歡迎訪問蘇州華殷包裝機械制造有限公司官網!

產品詳細

40

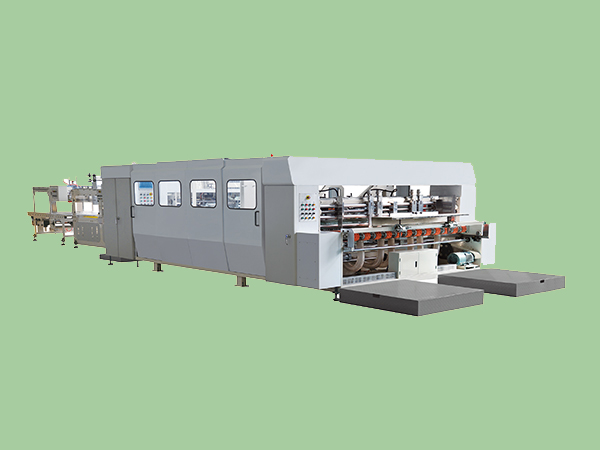

產品名稱:ZD系列全自動粘訂一體機

發布日期:2019-10-23

點擊數:1158

詢價:點擊產品詢價

二維碼:

簡述:

產品詳情



主要特點:

◎ 8個伺服電機配合聯動,提高的設備穩定性

從進紙到折箱和釘共使用8個西門子(SIEMENS),伺服電機聯動配合,

◎ PLC觸摸屏等電器

采用了西門子(SIEMENS)、歐姆龍(OMRON)、施耐德(Schneider)、亞德客(AIRTAC)等國際品牌增加了設備的穩定性。

◎ 伺服前緣送紙方式確保能供紙

伺服前緣送紙采用真空帶傳送方式,不管何種類型的紙板也可以迅速、及時供紙。

◎ 碰線機構

采用鍘刀式碰線,是紙箱行業中碰線效果較好一種,能盡量滿足紙箱縫大小對縫和剪刀差的要求。

◎ 機器手臂折疊

機器手臂折疊 使紙箱成型更好 。

◎ 操作簡單功能豐富

觸摸屏操作簡單,輸入紙箱尺寸一鍵調整到位。

◎ 效率高

釘箱速度每分鐘可達到80張

Machine characteristics:

◎8 servo motors cooperate with linkage, improve the reliability of the machine

From cardboard feeding to folding and carton stitching, totally using 8 SIEMENS servo motorcooperate with linkage,

◎PLC touch screen and almost all other electric appliances are using SIMENS, OMRON, Schneider, AIRTAC and other international famous brand, increase the reliability of the machine

◎Servo lead edge feeding type to ensure cardboard feeding accurately

Servo lead edge feeding is using vacuum belt transmitting mode, no matter which type of cardboard, all can feed fast and accurately.

◎Line pressing structure

Use fodder choppor type line pressing, is the best one in the carton industries, try to meet the requirements of carton gap size big or small on seam and scissor error.

◎Robot arm folding

Robot arm folding makes the carton forming much better.

◎Easy operation and rich function

Touch screen is easy to operate, input the carton size , one click adjusting in place.

◎High efficiency

Carton Stitching speed in one minutes can maximum reach 80 pieces cardboards.

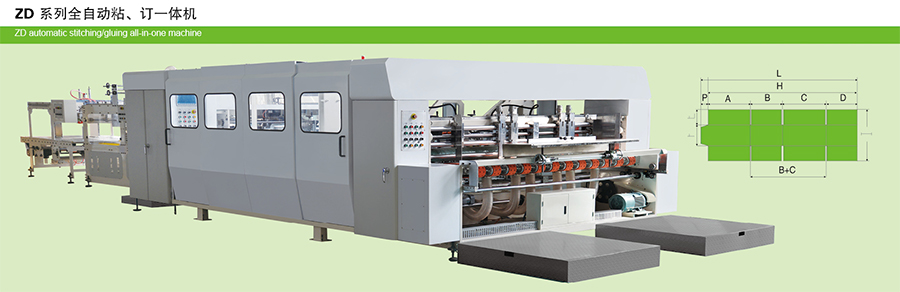

箱型參數Carton type parameter                                                                                                            尺寸size(mm)

No.

C=A

B=D

B+C

E

F

H

L

I

P

Min

200

200

400

0

50

800

830

300

30

Max

650

650

1300





2600

2630

800

40

技術參數 Specification:

箱型Carton Type

項目Items

適合紙板Suitable cardboard

A.B.C.E.F 楞三層,五紙板    A.B.C.E.F flute 3ply, 5 ply cardboard

產品成型精度  Product forming precision

壓線部:± 0.5mm    折合成型剪刀差:± 1.5mm

Line pressing unit:±0.5mm folding forming scissor error: ±1.5mm

釘箱速度 Stitching speed

釘頭速度: 1100 釘次 /分鐘(雙釘)

Stitching head speed: 1100 nails/min (double nail)

展開箱高: 300mm -800mm 80 片/分鐘   Opening carton height:300mm-800mm 80pcs/min

粘箱速度  Gluing speed

展開箱高: 300mm -800mm 80 片/分鐘    Opening carton height: 300mm-800mm 80pcs/min

主電機功率  Main motor power

32KW 160A

外形尺寸  Dimension

11700*39 00*187 0mm

設備重量Machine weight

11 T
