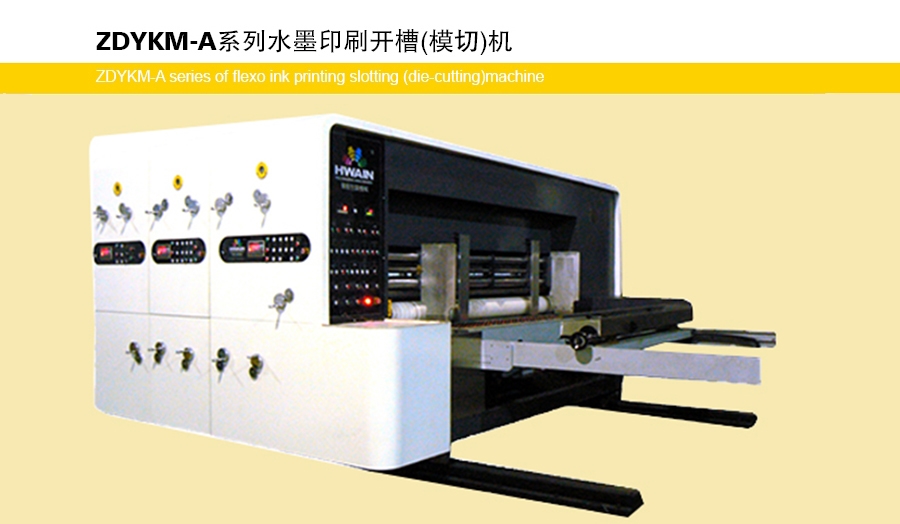

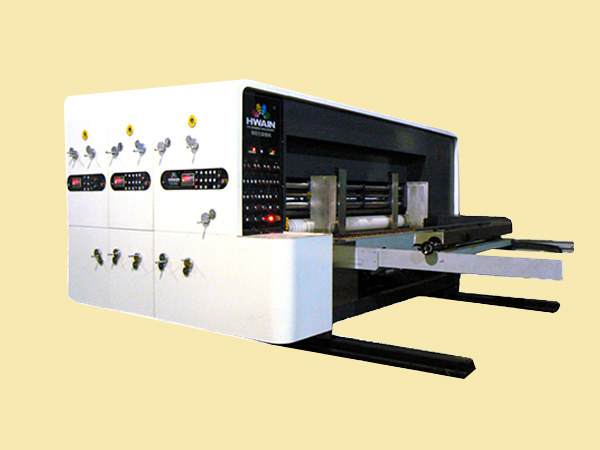

產品名稱:ZDYKM-18-A系列
發布日期:2019-10-23
點擊數:1335
詢價:點擊產品詢價
二維碼:
簡述:
本機簡介:
◎ 本機由送紙部、印刷部、開槽部、模切部四部分組成并可根據用戶生產情況隨意組合。
◎ 本機可以與接料機、邊角清除機組成普通全自動生產流水線。
◎ 送紙部采用前緣送紙系統。
◎ 進紙方式可選擇無軸進紙或有軸進紙。
◎ 配有高壓吸塵、毛刷或毛刷軸二級除塵系統。
◎ 網紋輥可配膠輥或刮刀兩種上墨方式,并且可快裝組合。
◎ 版輥橫移可選擇PLC控制或手輪調整。
◎ 傳動齒輪采用優質合金鋼,滲碳淬火后精磨制造。
◎ 齒輪采用噴淋潤滑和潤滑脂集中供油潤滑系統,并具備油路平衡功能。
◎ 主機、風機采用變頻控制,相位電機可采用PLC觸摸屏控制或數字控制。
◎ 開槽部采用PLC觸摸屏控制可實現紙箱數據輸入一鍵成型,并具有訂單儲存功能。
Brief Introduction:
◎ This machine is composed of four units, which are feeding unit, printing unit, slotting unit, die cutting unit and it can be freely combined according to user’s production situation.
◎ This machine can make up normal automatic production line with stacker, corner cleaner machine.
◎ Feeding unit adopts lead edge feeder.
◎ The feeding adopts without shaft feeding or shaft feeding.
◎ Equipped with high pressure vacuum device, brush or brush shaft two stage dust removal system.
◎ Anilox roller can be equipped with rubber roller and doctor blade two ways of supplying inking, and be quickly combined.
◎ Printing roller lateral movement is controlled by PLC or handwheel.
◎ Transmission gear adopts high quality alloy steel, fine grinding is manufactured after carburizing and quenching.
◎ Gear adopts spray lubrication and lubricating grease centralized oil supplied lubricating system, and has oil line balance function.
◎ Main and blower adopt frequency conversion control, and the phase motor can be controlled by PLC touch screen or digital control.
◎ The slotting until adopts PLC touch screen to control the data input of the carton, and has the order storage function.
技術參數 Specification:
產品系列 | Product series | 1200系列/1400系列 | 1600系列/1800系列 | 2200系列/2500系列 | |||||||||
| 1420 | 1424 | 1428 | 1432 | 1824 | 1828 | 1832 | 1836 | 2528 | 2532 | 2536 | 2540 | |
機械設計速度(m/min) | Machanical design speed | 220 | 220 | 220 | |||||||||
最大進紙尺寸 | Max.feeding size | 1400*2150 | 1400*2550 | 1400*2950 | 1400*3350 | 1800*2550 | 1800*2950 | 1800*3350 | 1800*3750 | 2500*2950 | 2500*3350 | 2500*3750 | 2500*4200 |
最小進紙尺寸 | Min.feeding size | 320*650 | 430*750 | 540*950 | |||||||||
最大印刷面積 | Max.printing size | 1400*2000 | 1400*2400 | 1400*2800 | 1400*3200 | 1800*2400 | 1800*2800 | 1800*3200 | 1800*3600 | 2500*2800 | 2500*3200 | 2500*3600 | 2500*4000 |
標準印版厚度 | Standard printing plate thickness | 7.2 | 7.2 | 7.2 | |||||||||
套色精度 | Color accuracy | ≤0.5 | ≤0.75 | ≤1.0 | |||||||||
金屬上墨輥(目數) | Metal ink roll(mesh number) | 250-280 | 250-280 | 250-280 | |||||||||
陶瓷上墨輥目數(選配) | Ceramic ink roller on the mesh(optional) | 300-450 | / | / | |||||||||
上墨方式 | Ink on the way | 橡膠軸 | 橡膠軸 | 橡膠軸 | |||||||||
送紙方式 | Type of paper-feeding | 前緣+滾輪送紙 | 前緣+滾輪送紙 | 前緣+滾輪送紙 | |||||||||
印刷滾筒橫移 | Printing roller sway | ±6 | ±6 | ±6 | |||||||||
最大模切尺寸 | Max.die cutter size | 1400*1950 | 1400*2350 | 1400*2750 | 1400*3150 | 1800*2350 | 1800*2750 | 1800*3150 | 1800*3550 | 2500*2350 | 2500*2750 | 2500*3150 | 2500*3550 |
最小開槽間距 Min. slotting distance | 正刀 Positive cut | 185*185*185*185 | / | / | |||||||||
反刀 Reverse cut | 270*60*270*60 | 290*60*290*60 | 315*60*315*60 | ||||||||||
最大槽深 | Max.slotting depth | 350 | 450 | 625 |
